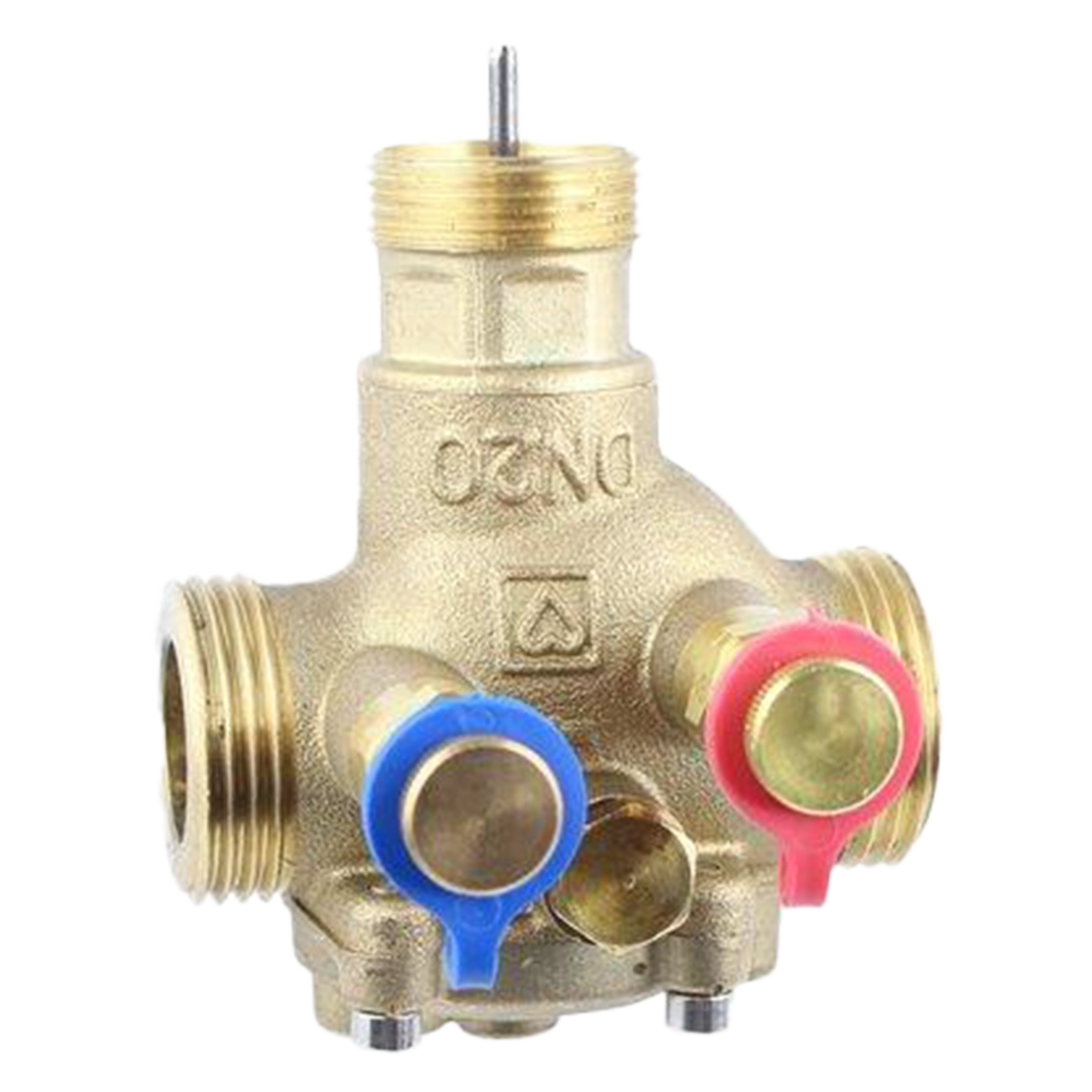

HERZ DZR
Smart PICV
Pressure Independent Control Valve for HVAC Applications
The HERZ DZR Smart PICV is a pressure-independent balancing and control valve designed for precision hydronic regulation in heating and cooling systems.
Product Description
The HERZ DZR Smart PICV (4006/4206 SMART Series) from HERZ Armaturen is a pressure-independent balancing and control valve designed for precision hydronic regulation in heating and cooling systems. It combines a control valve, balancing function, and differential pressure control in a compact DZR brass housing for long-term corrosion resistance.
Key Features
- DZR brass body (CC770S/CW602N) with stainless-steel internals.
- Linear control characteristic for precise modulation.
- Compatible with HERZ on/off or modulating actuators (M28x1.5).
- Flow capacity: 120–5200 l/h.
- Differential pressure: up to 6 bar.
- Operating pressure: 25 bar.
- Sizes: DN15–DN50.
Product Benefits
- Self-balancing operation with no need for manual commissioning.
- Stable control performance under varying pressure conditions.
- Corrosion-resistant construction supports long system lifetime.
- Reduced system noise and pump load for better efficiency.
- Quick preset configuration with adjustable flow limiter.
Applications
- Fan coils, chilled beams, radiant panels, and air-handling units.
- Commercial, institutional, and residential hydronic networks.
- Heating and cooling systems requiring stable HVAC flow control.
Maintains stable flow control under pressure changes.
Combines balancing and control functions in one valve.
DZR brass housing supports long-term durability.
Suitable for heating, cooling, and hydronic networks.
Technical Specifications
Detailed technical data for the HERZ DZR Smart PICV, designed for precision, reliability, and long-term performance in HVAC heating and cooling applications.
The HERZ DZR Smart PICV supports stable flow control and energy-efficient operation across a wide range of HVAC systems.
