Name: Hegewald & Peschke inspekt Static Universal Testing Machines
Brand: Hegewald & Peschke

One static testing range from 500 N to 2500 kN

The inspekt series is a complete range of static electromechanical universal testing machines for materials, specimens, finished products and components. It covers metals, plastics, elastomers, composites, lightweight materials, textiles, foils, springs, wires and complex components, with tensile, compression, bending, peel and shear tests.

The systems are modular and can be configured with grips, fixtures, load cells, extensometers, temperature chambers, furnaces, optical sensors and protective devices.

All machines run on LabMaster, the testing software developed by Hegewald & Peschke, which supports standard-compliant and customer-specific test procedures, data import and export, reporting and the integration of external devices.

Six series by load and frame size

up to 500 N

inspekt micro

Fmax: 500 N
Max. test stroke: 50 mm
Speed: 0.0005–600 mm/min
Stiffness: 25 N/µm
Mounting: Horizontal or vertical

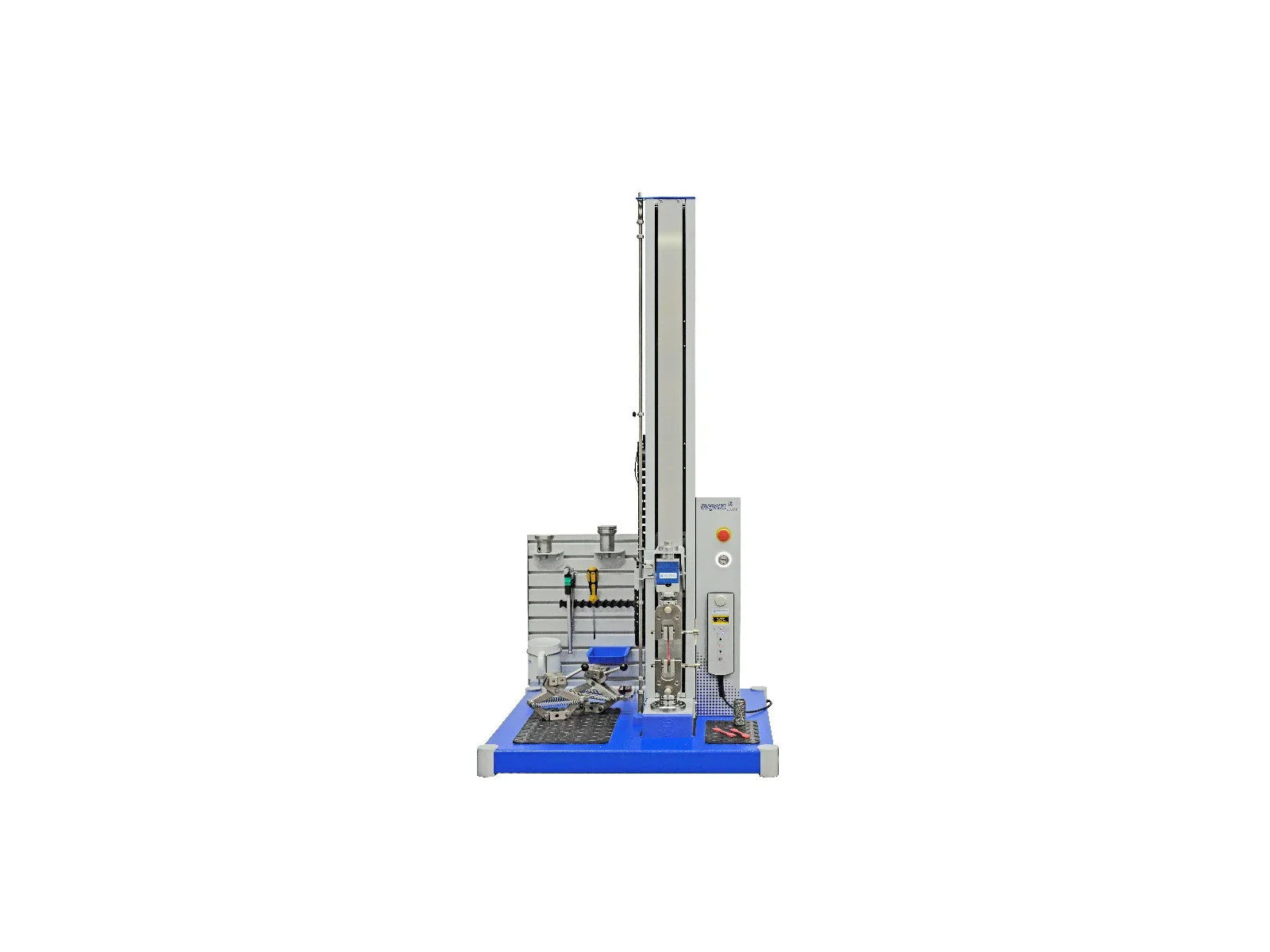

up to 2.5 kN

inspekt solo

Frame: 1 ball screw, C-frame
Test room heights: 475 / 1075 / 1375 mm (S / M / L)
Speed: 1.5 µm/min–1200 mm/min
Stiffness: 2.5–2.7 kN/mm

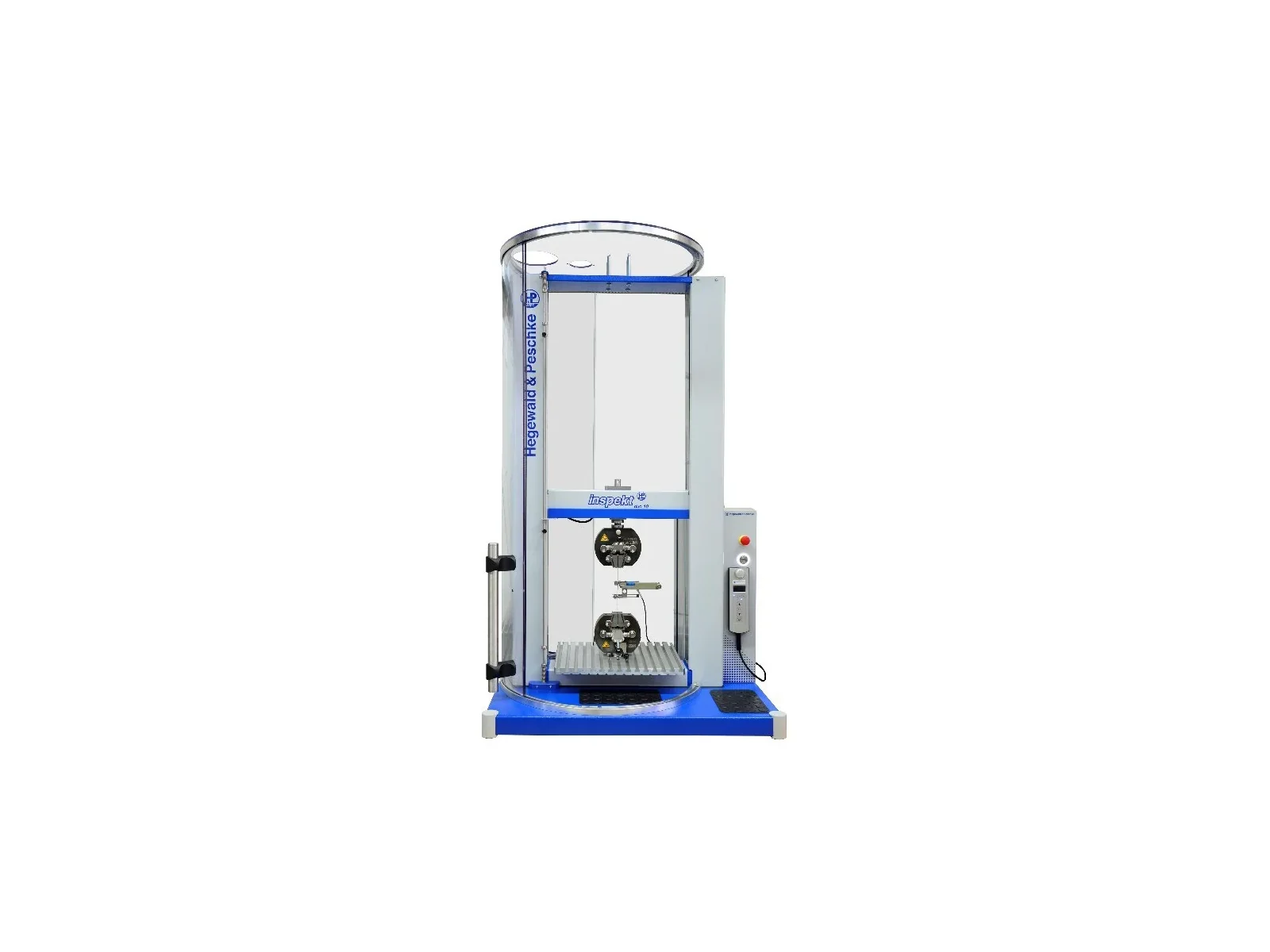

5 kN to 10 kN

inspekt duo

Frame: 2 ball screws, H-frame
Test room heights: 1025 / 1325 mm (M / L)
Speed: up to 1200 mm/min (5 kN), 600 mm/min (10 kN)
Stiffness: 10 kN/mm

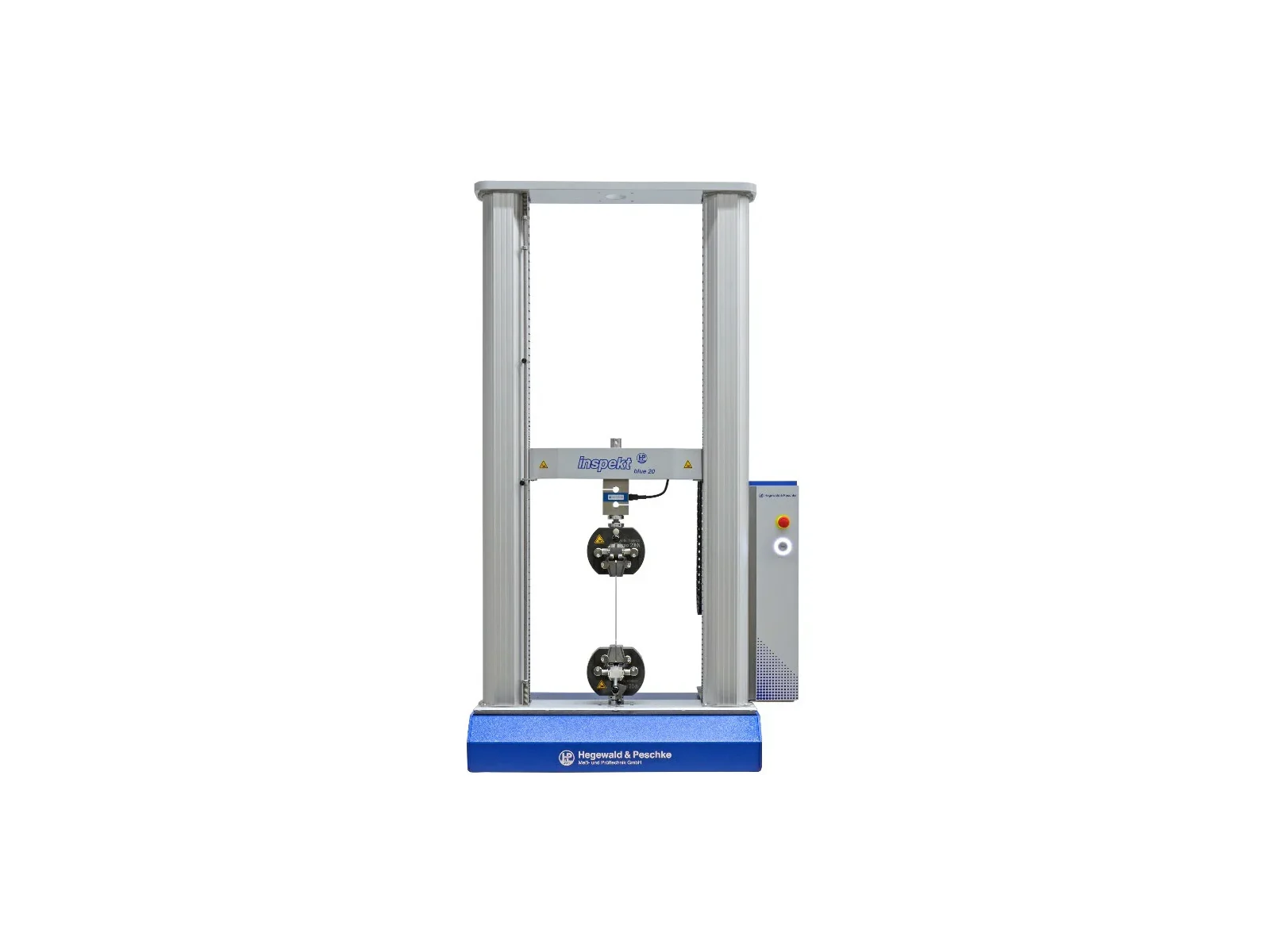

5 kN to 50 kN

inspekt blue

Frame: 2 ball screws, covered spindles
Speed: up to 2000 mm/min (5 kN), 240 mm/min (50 kN)
Stiffness: 15 kN/mm (5 kN), 52 kN/mm (50 kN)
Test room width: 420 mm

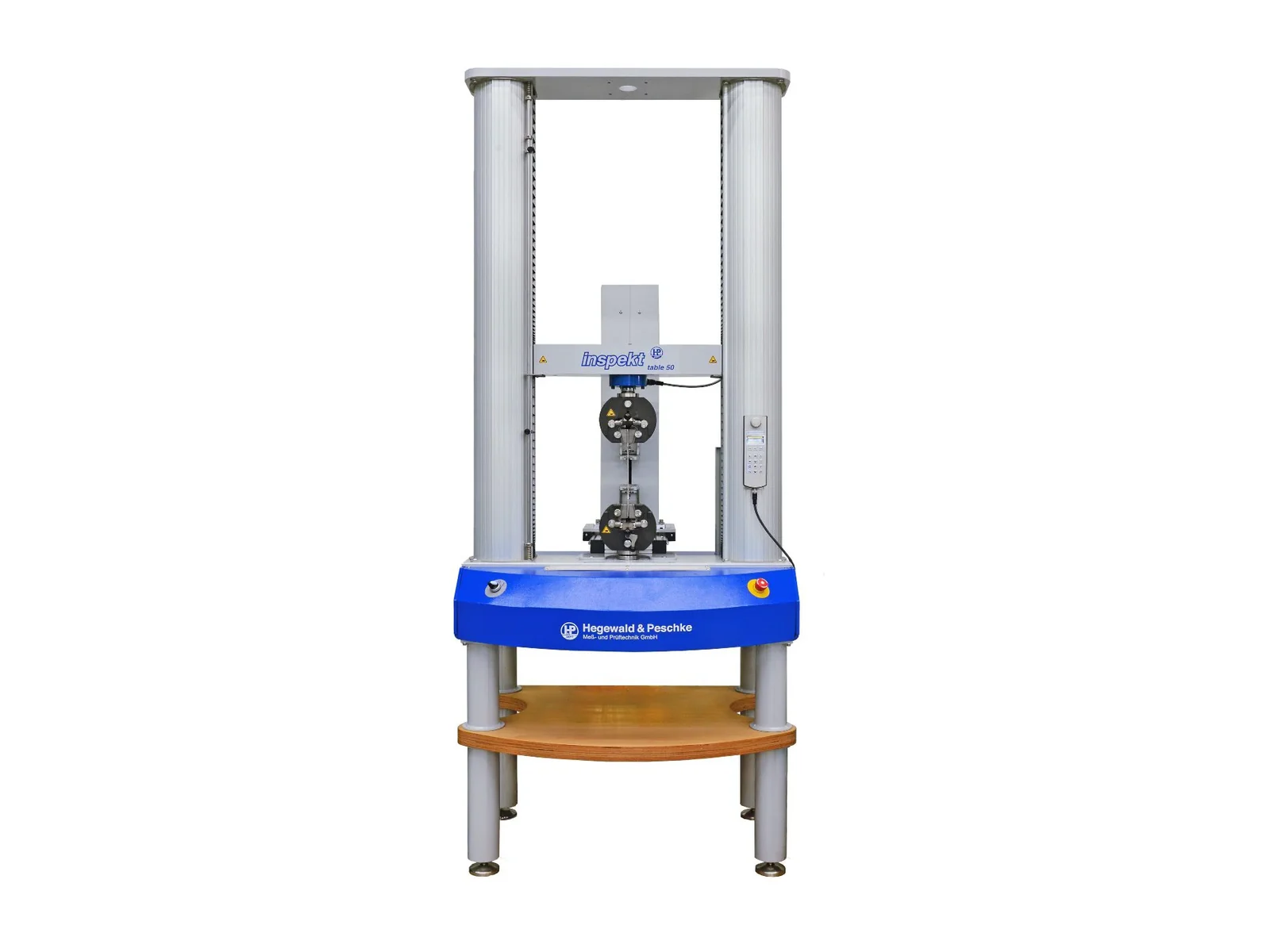

10 kN to 250 kN

inspekt table

Frame: 2 ball screws, variable height and width
Speed: up to 2000 mm/min (10 kN), 175 mm/min (250 kN)
Stiffness: 18 kN/mm (10 kN), 200 kN/mm (250 kN)
Versions: Table or stand-alone

inspekt 1500 kN floor-standing testing machine with hydraulic grips

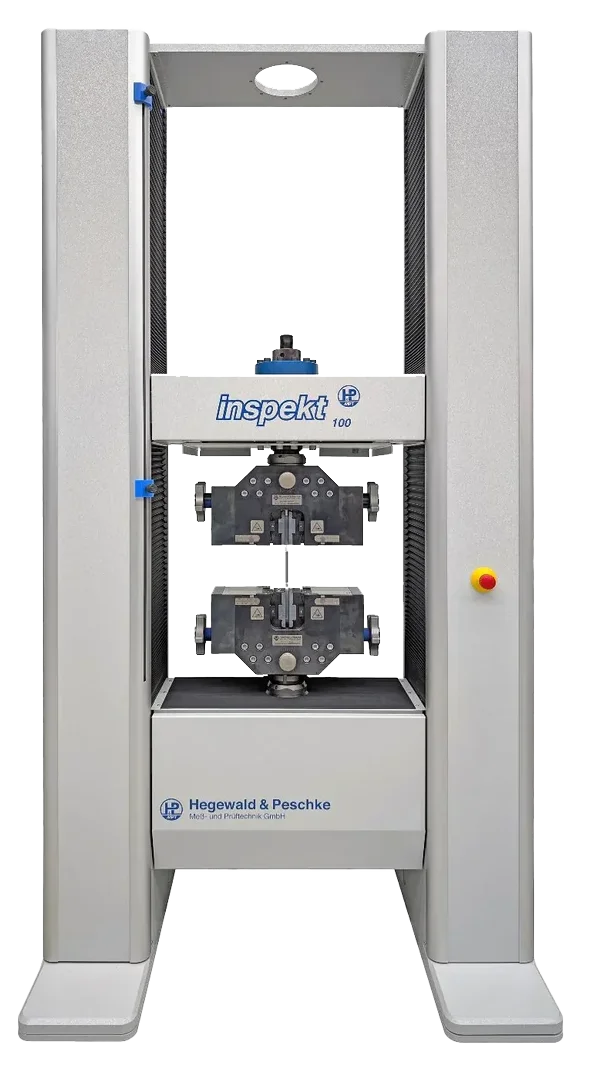

100 kN to 2500 kN

inspekt floor-standing

Frame: 4 guide columns, 2 ball screws
Speed: up to 1000 mm/min (100 kN), 250 mm/min (1200 kN)
Stiffness: 170 kN/mm (100 kN) to 750 kN/mm (1200 kN)
Test room: Variable heights and widths

Grips, fixtures and measuring devices

Grips and fixtures

Tensile grips.
Compression plates.
Bending, peel and shear fixtures.
T-groove plates.

Extensometers

Clip-on extensometers.
Long-distance extensometers.
Optical and video extensometers.

Peripheral devices

Furnaces and temperature chambers.
Measuring probes and optical sensors.
Additional measuring and control channels.

Protection

CE-compliant protective housing.
Protective housings and safety doors.

Where the inspekt series is used

Tensile testing of metals

Tensile tests on metal specimens with contact or optical extensometers.

Plastics and elastomers

Tensile testing of plastics and elastomers, including very high strains.

Component testing

Testing of components and finished products with fixtures and T-groove plates.

Temperature testing

Testing with temperature chambers or furnaces connected to the machine.

CompositesFoils and filmsTextilesWiresSpringsCompression testingBending testingPeel testingShear testingLightweight materialsR&D material characterizationProduction quality controlIncoming and outgoing inspection

Modular frames and LabMaster control

Testing range

Static machine range from 500 N to 2500 kN.
Tensile, compression, bending, peel, shear and component tests.
Crosshead speed up to 2000 mm/min, depending on machine size.
Tabletop, compact tabletop, floor-standing and high-force floor-standing systems.

Measurement

Force accuracy class 1, optionally class 0.5, to DIN EN ISO 7500-1 and ASTM E4.
Force measuring range from 0.1% to 100% of nominal load, depending on model and load cell.
Frame stiffness from 2.5 kN/mm (solo L) up to 750 kN/mm (1200 kN).
Floor-standing machines with 4 hardened guide columns and 2 backlash-free precision ball screws.

Control electronics

Force, displacement and strain control.
Overload protection, automatic sensor identification and calibration data storage.
Specimen break detection and return function.
Ethernet/LAN or USB data transmission at 50 Hz, higher rates as option.

LabMaster software

Included with complete modules for tensile, compression, bending and peel tests.
Customer-specific test procedures.
Connection of furnaces, temperature chambers, extensometers and optical sensors.

Why choose the inspekt series

One product family. Covers nearly all static material testing applications in one range.

Right-sized machine. Selection by load, specimen size and application, for routine QC and R&D testing.

Modular upgrades. The modular design allows future upgrades and new applications.

Stable measurement. High frame stiffness improves measurement stability and repeatability.

Simple operation. LabMaster simplifies test setup, reporting and data management.

Long-term service. Calibration, maintenance and software support from H&P.
