Load levels
100, 250, 400, 600, 1200, 1500, 2000 and 2500 kN as standard.
Component Testing Machines

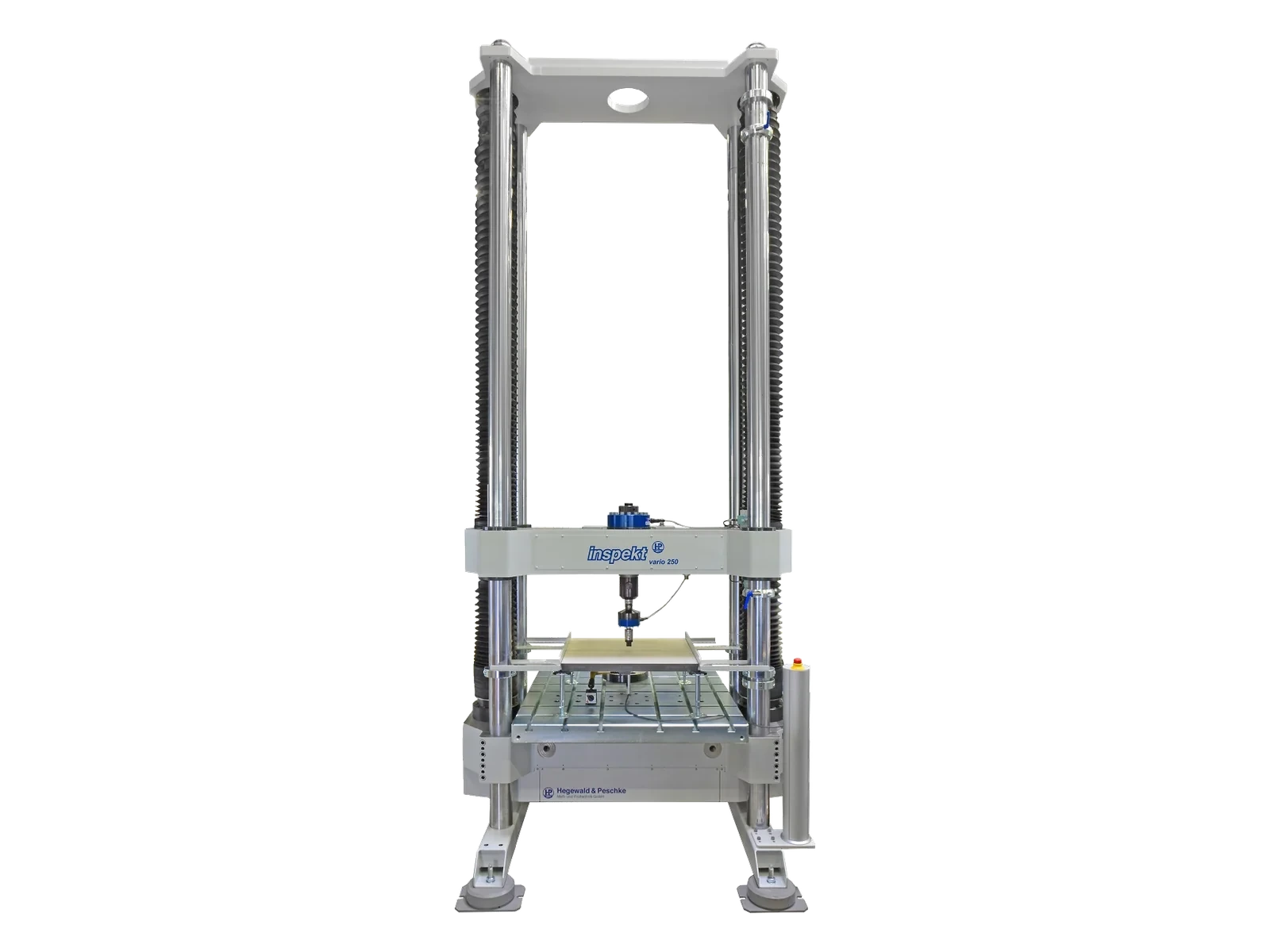

Hegewald & Peschke inspekt vario Component Testing Machines
Flexible component testing machines for large and different-shaped parts
The inspekt vario from Hegewald & Peschke is an open-frame component testing machine for parts of different sizes and shapes, with load capacities from 100 kN to 2500 kN and test room widths up to 1000 mm.
Manufactured byHegewald & Peschke
100–2500 kNLoad capacity
8Standard load levels
610–1000 mmTest room width
4 + 2Guide columns + ball screws
Overview
Open frame for large and special components
The inspekt vario is a flexible testing machine for components with different sizes and shapes. It suits large parts, special components, pipes, floor systems and force calibration tasks.
Its open frame design gives more space and easier access to the test area. The test room width can be selected as 610 mm, 750 mm or 1000 mm, while test room height and depth are adapted to the component.
The machine is built with 4 guide columns and 2 backlash-free ball screws, and works with LabMaster software for test setup, control and reporting.
Configurations
Load levels and test room sizes
Test room width
Selectable as 610 mm, 750 mm or 1000 mm.
Test room height and depth
Adapted to the component; application examples from 1900 mm to 5000 mm height.
Customer-specific design
Modular design for individual requirements, e.g. machine anchored in the floor without lower fixed crosshead.
Applications
Where the inspekt vario is used

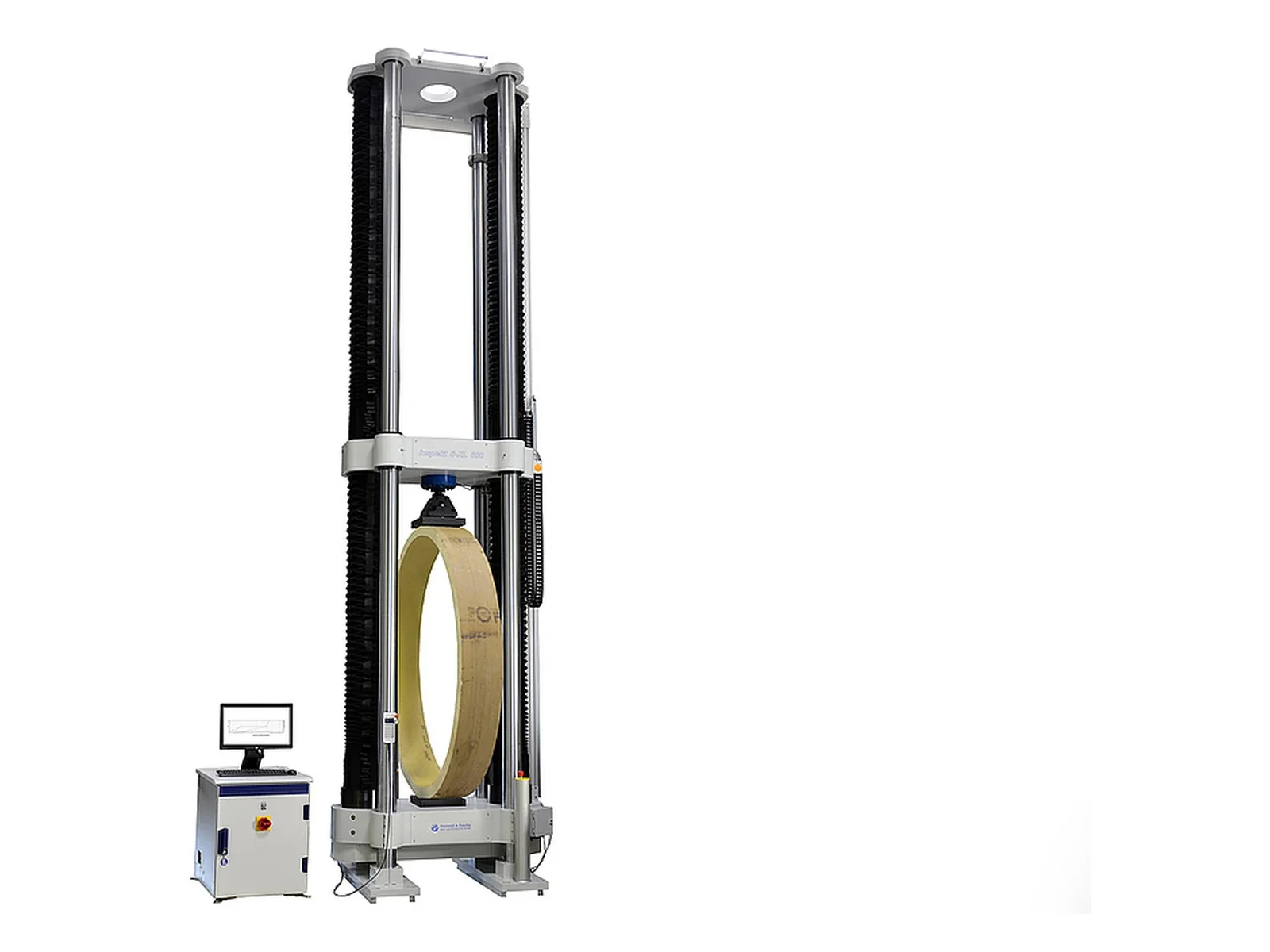

Ring stiffness of pipes
Example: 600 kN test load with 5000 mm test room height.

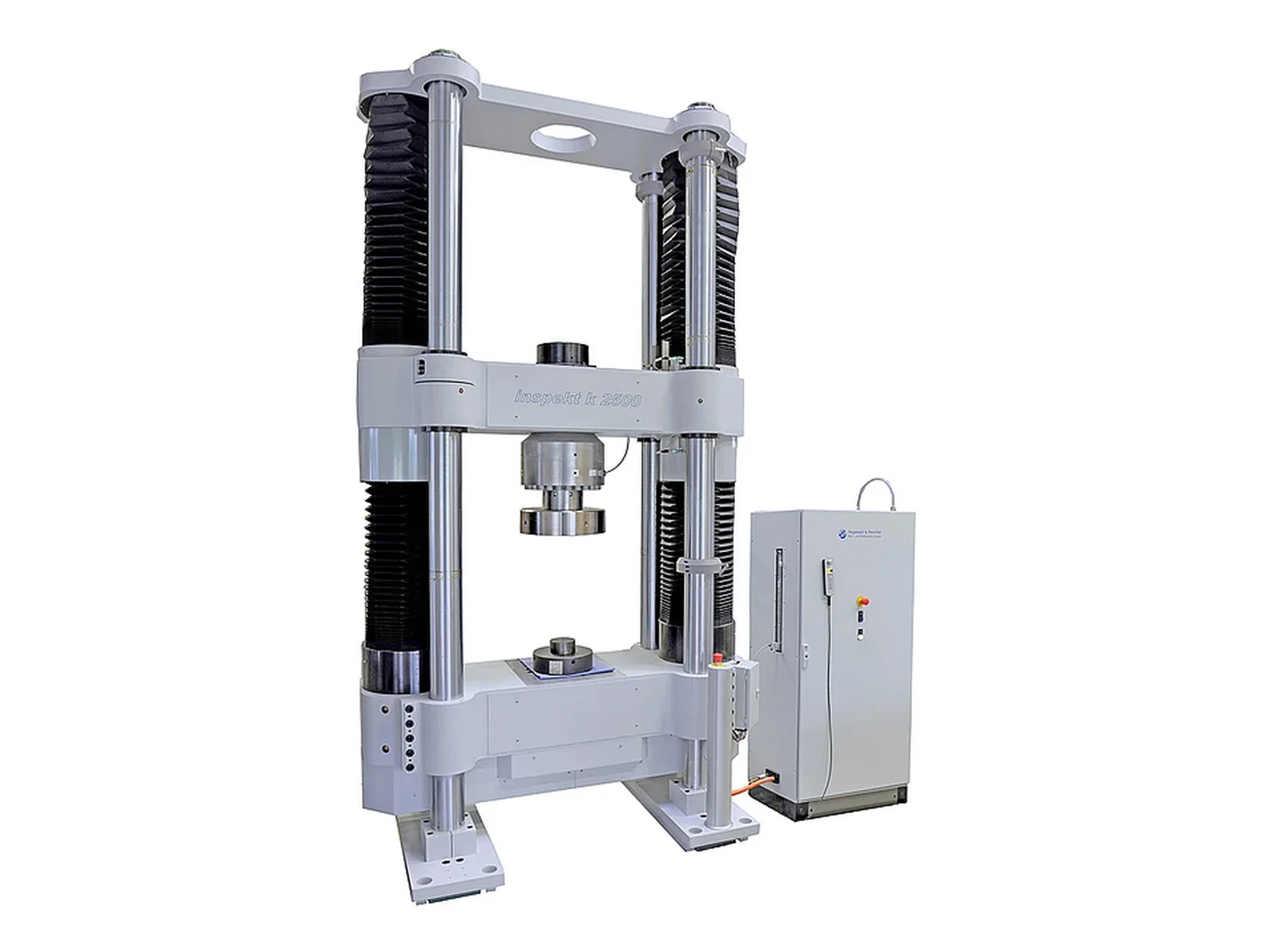

Load cell calibration
Calibration of load cells and force transducers, e.g. at 2500 kN.
System floor components
Testing raised floor components at 250 kN with 2500 mm test room height.

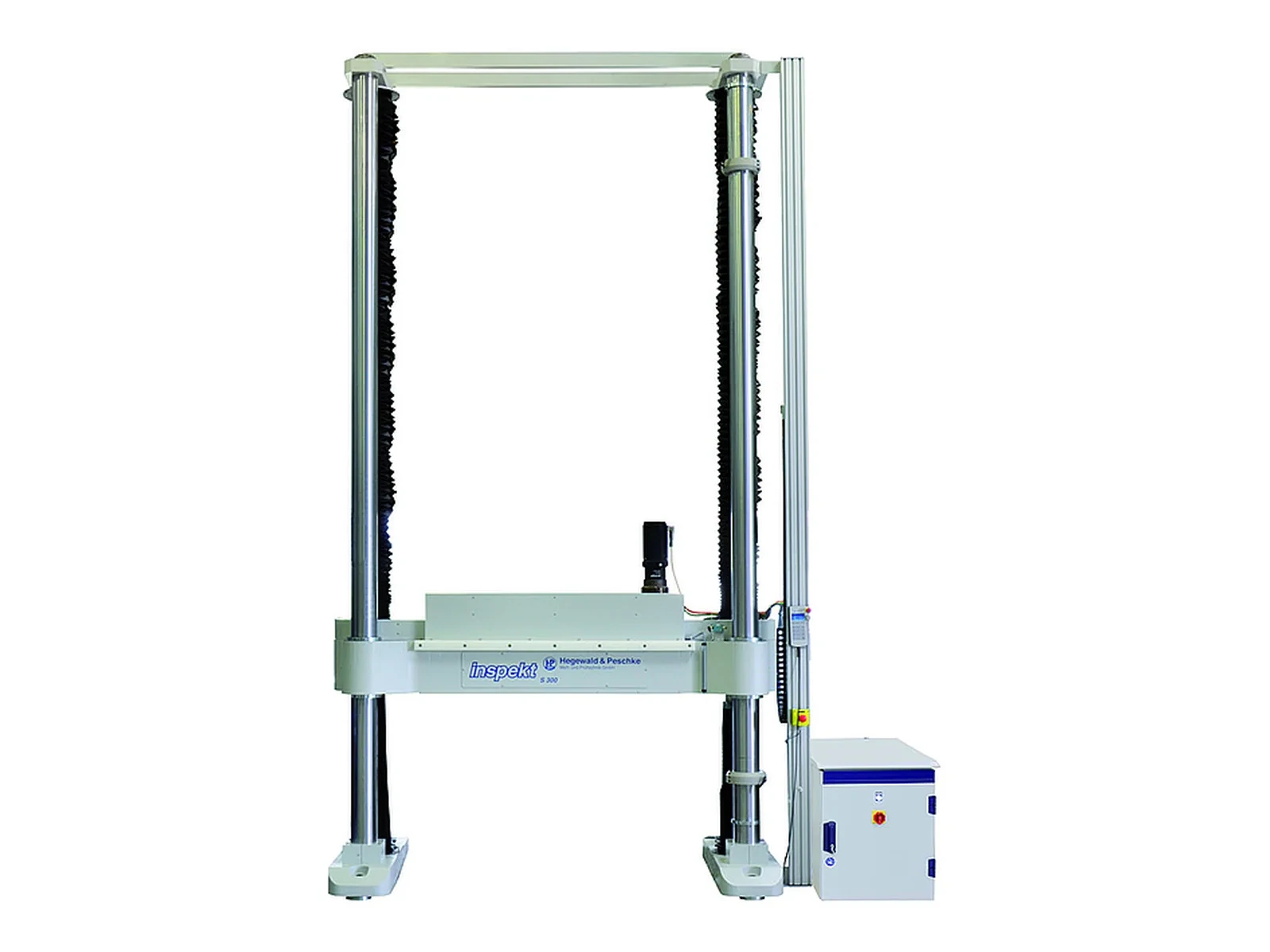

Large components
Component tests at 300 kN with a 3500 mm test room height.

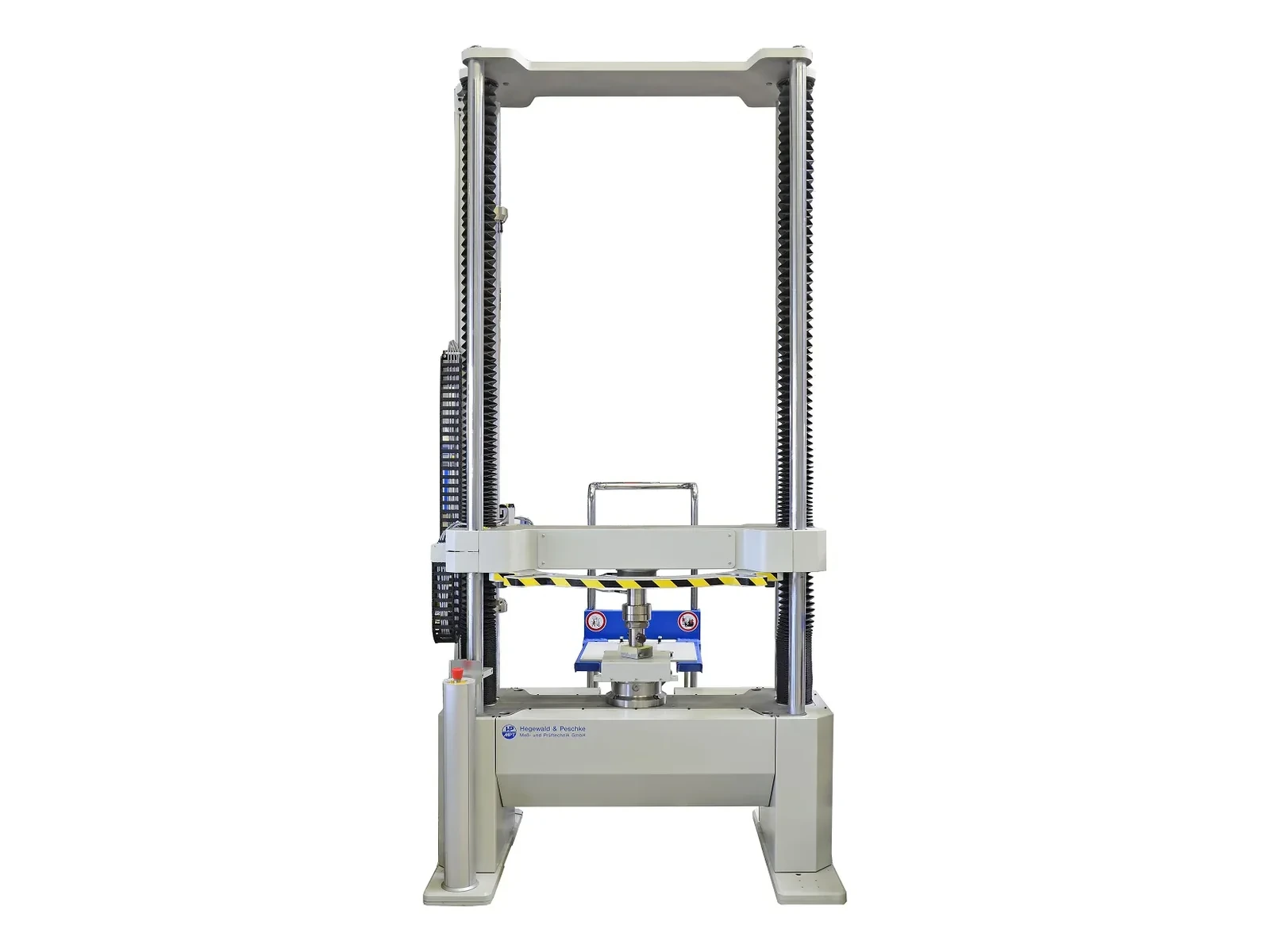

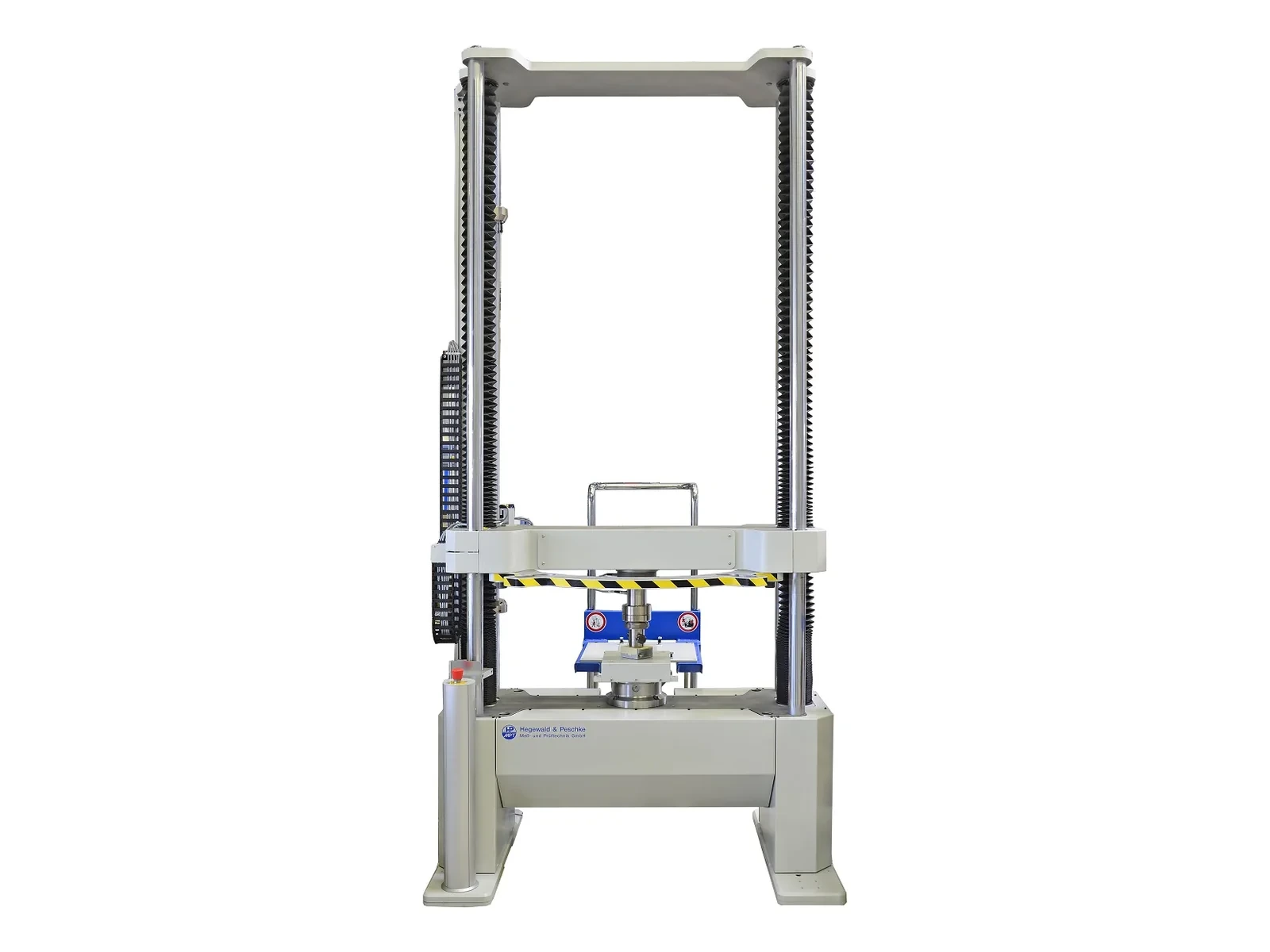

Torsion testing
Torsion tests at 150 kN with a 2000 mm test room height.
Features
Open frame on 4 guide columns
Frame
- Load capacity from 100 kN to 2500 kN.
- Open frame design for large and irregular parts.
- Adjustable test room height and depth.
- Columns can be used to mount accessories.
Mechanics
- 4 surface-hardened guide columns.
- 2 backlash-free precision ball screws.
- High force transmission accuracy and lateral stability.
- Bellow-covered design with low maintenance needs.
Control and software
- LabMaster for tensile, compression, bending and peel tests.
- Force, displacement and strain control.
- Overload protection, automatic sensor identification and specimen break detection.
- Manual positioning by hand panel or software.
Safety and upgrades
- Optional CE-compliant protective housing.
- Suitable for harsh production environments.
- Upgradeable design for future requirements.
Benefits
Why choose the inspekt vario
Large components. Suitable for large, heavy and special-shaped components.
Easy access. The open frame gives easy access to the test area.
Repeatable results. The stable frame gives accurate and repeatable results.
Fewer machines. Reduces the need for several dedicated machines.
Simple operation. LabMaster software keeps operation simple.
Future upgrades. The machine can be upgraded later if requirements change.
Need support with this component testing machine?
Share your component sizes, test types, maximum load and test room requirements, and our Performance Engineering team will support you with the suitable product information.
