Materials
- Body: grey cast iron GJL 250 (EN 1561).
- Upper part: brass.
- Seals: EPDM, soft-seated valve seat.
- Spindle sealing: elastic double O-ring.
Flanged Globe Valve
HERZ STRÖMAX-AGF 4218 Flanged Globe Valve
4218 Series — Cast Iron PN16 Shut-Off Valve
HERZ STRÖMAX-AGF 4218 from HERZ Armaturen is a flanged cast iron globe valve with non-rising spindle for shut-off and commissioning in larger heating and cooling circuits, available in DN25 to DN80.
Manufactured by
HERZ Armaturen
HERZ STRÖMAX-AGF 4218 Flanged Globe Valve
Review the confirmed product information, including description, features, benefits, and applications.
The HERZ STRÖMAX-AGF Globe Valve (4218 Series) from HERZ Armaturen is a flanged shut-off and commissioning valve for heating and cooling systems. Made from cast iron (GJL 250) with a brass upper part and EPDM seals, it provides long-term reliability and tight sealing.
The non-rising spindle ensures a compact design and easy operation in all mounting positions. Available in DN25–DN80, the valve operates up to PN16 and 110°C, making it ideal for large hydronic installations. Its epoxy coating protects against corrosion and mechanical wear.
Pressure & Temperature
- Nominal pressure: PN16.
- Operating temperature: -10°C to +110°C.
- Ethylene or propylene glycol mixtures of 25–50% permitted.
Connection & Sizes
- Flanged connections to EN 1092-2.
- Face-to-face length to ÖNORM EN 558-1, basic series 1.
- Sizes DN25 to DN80.
Design & Coating
- Straight body with non-rising spindle.
- Alkyd resin primer with lead- and chromate-free rust protection, epoxy top coat, blue.
- Flow direction marked on the body.
Sizes, Dimensions & Flow
Dimensions in mm. L = face-to-face length, H = height, D = flange outer diameter, kvs in m³/h.
| DN | L (mm) | H (mm) | D (mm) | kvs |
|---|---|---|---|---|
| 25 | 160 | 110 | 115 | 11 |
| 32 | 180 | 110 | 140 | 20.1 |
| 40 | 200 | 110 | 150 | 30.4 |
| 50 | 230 | 135 | 165 | 36.9 |
| 65 | 290 | 145 | 185 | 62.5 |
| 80 | 310 | 145 | 200 | 75 |
Robust Construction
Robust cast iron construction for large-scale heating and cooling systems.
Easy Operation
The non-rising spindle allows easy operation and a compact installation height.
Corrosion-Resistant Coating
The epoxy coating protects the valve against corrosion and mechanical wear.
Long Service Life
Double O-ring spindle sealing supports long-term tightness and ease of movement.
Accessory Compatibility
Compatible with HERZ test points and drain accessories.
HERZ STRÖMAX-AGF 4218 is suitable for shutting off distribution lines, circuits, and heat exchangers in heating and cooling systems.
Central Heating & Cooling
Central heating and cooling systems requiring robust flanged shut-off valves.
Hydronic Balancing Networks
District energy and hydronic balancing networks requiring shut-off and commissioning duty.
Heat Exchangers & Plant Rooms
Heat exchanger connections and plant room installations.
HVAC & Water Shut-Off
Shut-off duty in HVAC and water systems.
Need support with this flanged globe valve?
Share your required DN size, system medium, operating temperature, and accessory requirements, and our MEP team will support you with the suitable product information.
Other Products in Globe Valves
Explore other products available within the same product category and open each page for complete technical details.

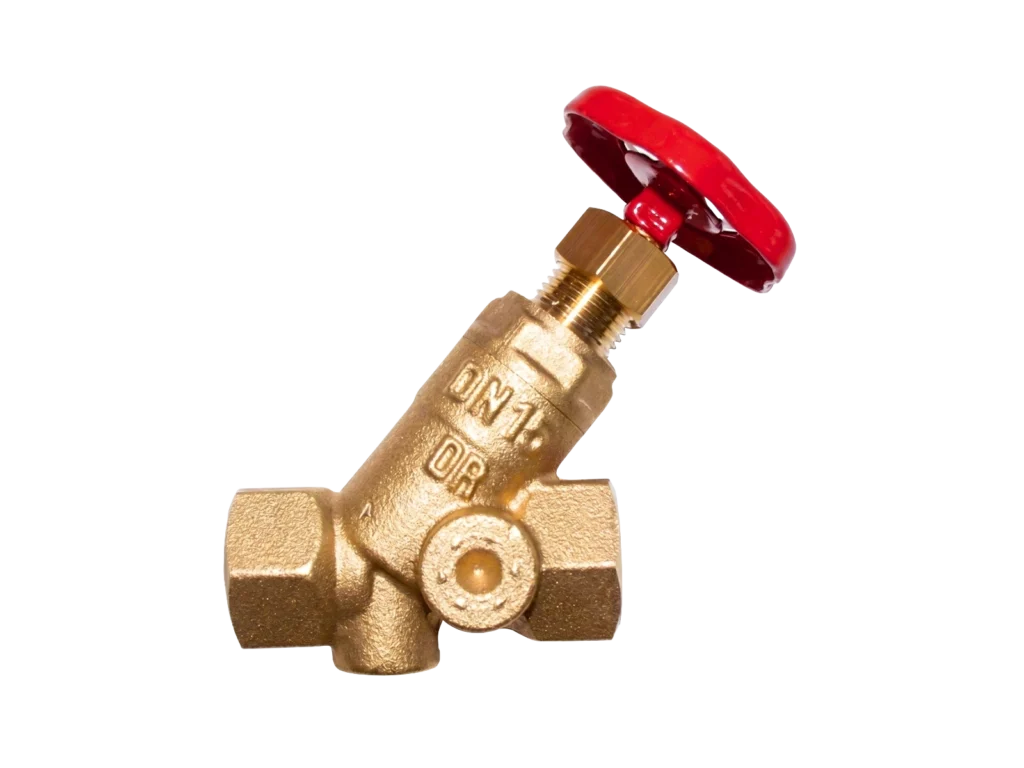

HERZ STRÖMAX 4115
