Body & Internal Components
- Ductile-iron body and bonnet manufactured from EN-JL 1050.
- EPDM-coated ductile-iron disc.
- Stainless-steel stem manufactured from AISI 410.
- Non-rising stem construction.
Flanged Commissioning Valve

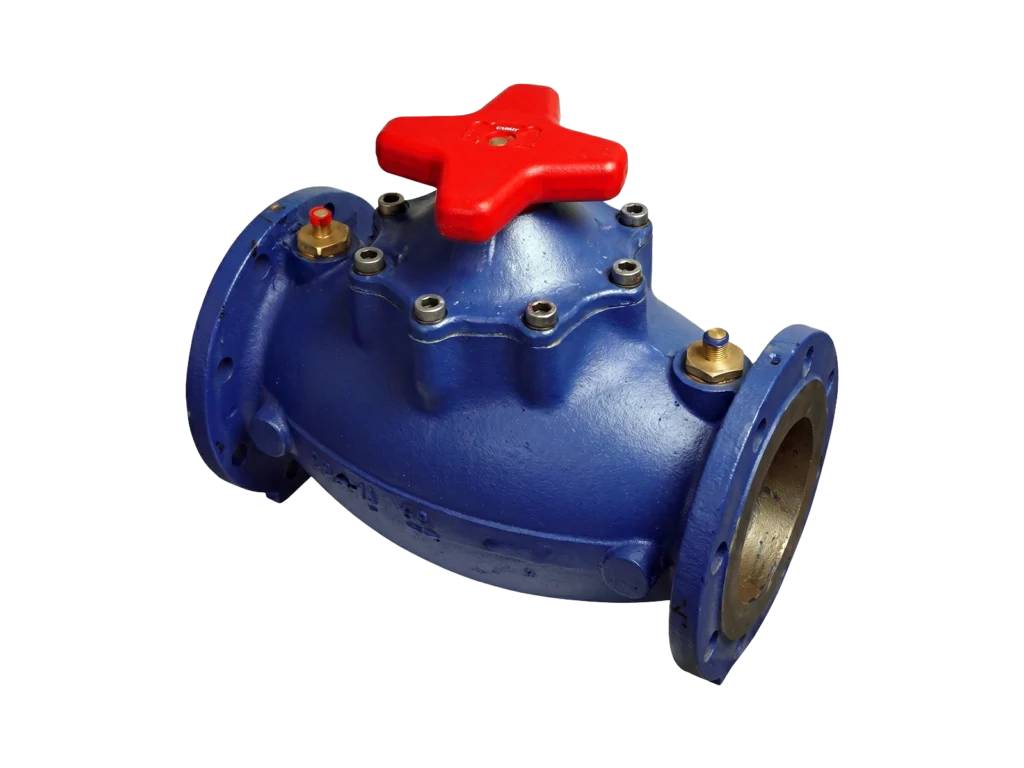

HERZ STRÖMAX-GF 4218GF Commissioning Valve
Ductile Iron PN25 Double-Regulating Balancing Valve
HERZ STRÖMAX-GF 4218GF Commissioning Valve from HERZ Armaturen is a flanged double-regulating valve designed for accurate hydraulic balancing and flow verification in high-pressure HVAC and industrial water systems. Its robust ductile-iron construction, PN25 rating, linear flow characteristic, mechanical preset indicator, and two test points support reliable commissioning across large heating, cooling, district-energy, and process-water networks.
Manufactured by
HERZ Armaturen
HERZ STRÖMAX-GF 4218GF Commissioning Valve
Review the confirmed product information, including construction, pressure conditions, balancing features, benefits, and large-scale hydronic applications.
HERZ STRÖMAX-GF 4218GF Commissioning Valve from HERZ Armaturen is a flanged double-regulating valve designed for accurate hydraulic balancing and flow adjustment in high-pressure heating, cooling, and industrial water systems.
Its ductile-iron body and bonnet provide the strength required for large commercial and industrial installations, while the PN25 pressure rating supports demanding hydronic operating conditions.
The valve incorporates a non-rising stainless-steel stem, EPDM-coated ductile-iron disc, preset dial indicator, and two integrated test points for differential-pressure measurement and flow verification.
Flanged EN 1092-2 connections and a size range from DN65 to DN300 support installation in central HVAC plants, district energy networks, process-cooling systems, and industrial fluid circuits.
Pressure & Temperature
- Nominal pressure rating: PN25.
- Maximum working pressure: 25 bar.
- Shell testing pressure: 37.5 bar.
- Seat testing pressure: 27.5 bar.
- Operating temperature range from -10°C to +120°C.
Connections, Sizes & Media
- Flanged connections according to EN 1092-2.
- Available in nominal sizes from DN65 to DN300.
- Suitable for water systems.
- Suitable for water-glycol mixtures containing up to 50% glycol.
Balancing, Sealing & Measurement
- Linear flow characteristic.
- Mechanical dial indicator for repeatable presetting.
- Two integrated test points for differential-pressure measurement.
- Graphite, asbestos-free stem packing.
High-Pressure Operation
The PN25 design supports balancing duties in hydronic systems operating under demanding pressure conditions.
Robust Ductile-Iron Construction
The ductile-iron body, bonnet, and coated disc support long-term use in large HVAC and industrial installations.
Repeatable Presetting
The mechanical dial indicator supports clear, repeatable adjustment during initial commissioning and later system verification.
Reliable Sealing
The EPDM-coated disc and graphite stem packing support tight valve operation and reduced internal leakage.
Simple Flow Verification
Two integrated test points allow differential-pressure measurement using compatible HERZ measuring instruments.
Large-System Compatibility
The DN65–DN300 size range and flanged construction support central plants, district systems, and industrial fluid networks.
The HERZ STRÖMAX-GF 4218GF is intended for large hydronic and industrial systems requiring flanged commissioning, preset flow adjustment, and differential-pressure-based balancing.
High-Pressure Chilled-Water Circuits
Chilled-water distribution systems requiring accurate commissioning and hydraulic balancing under high operating pressures.
High-Pressure Hot-Water Circuits
Central hot-water installations requiring controlled flow adjustment across large heating networks.
Heating, Cooling & Process Plants
District energy plants and process-cooling systems requiring durable flanged balancing valves.
Industrial Fluid Networks
Industrial water and water-glycol networks requiring PN25 operation and repeatable flow adjustment.
HVAC Plantrooms
Commissioning and balancing duties in central HVAC plantrooms using integrated test points and preset indication.
Need support with this commissioning valve?
Share your required DN size, design flow rate, available differential pressure, operating temperature, system medium, glycol concentration, and flange requirements. Our MEP team will support you with the suitable product information.
