Body & Connections
- DZR copper-alloy body, CW602N, according to EN 12420.
- DZR copper-alloy end connections with internal threads according to ISO 7-1.
- Nominal size range from DN15 to DN50.
Two-Port Control Ball Valve
HERZ DZR Two-Port Control Ball Valve
HERZ DZR Two-Port Control Ball Valve — 2117 Series Linear Flow Control
HERZ DZR Two-Port Control Ball Valve from HERZ Armaturen is designed for continuous regulation of hot and cold water, air, and water-glycol mixtures in closed-circuit HVAC and hydronic systems. Its dezincification-resistant copper-alloy construction, V-shaped ball bore, PTFE seat, and double EPDM O-ring spindle sealing support precise linear flow control, tight shutoff, and low-torque operation.
Manufactured by
HERZ Armaturen
HERZ DZR Two-Port Control Ball Valve
Review the confirmed product information, including description, features, benefits, and applications.
The HERZ DZR Two-Port Control Ball Valve, Series 2117, from HERZ Armaturen is a linear-characteristic control valve designed for continuous regulation of hot and cold water or air in closed-circuit systems.
Constructed from dezincification-resistant copper alloys, the valve provides corrosion resistance and long-term operational reliability in demanding HVAC and hydronic environments.
Its V-shaped, precision-machined ball bore provides accurate flow control and a linear response characteristic. PTFE seats, EPDM O-rings, and a double O-ring spindle sealing arrangement support tight shutoff, low operating torque, and leak-resistant operation.
The valve is engineered for smooth actuation with torque requirements below 8 Nm at nominal voltage. It supports integration with HERZ electric actuators in 2/3-point and modulating versions. An optional HERZ manual handle, model 1 2100 90, can be installed across sizes DN15 to DN50.
Ball & Sealing
- DZR copper-alloy ball with V-shaped bore.
- Chrome-plated and micro-finished ball surface.
- PTFE ball seat with EPDM O-ring.
- DZR copper-alloy spindle, CW614N.
- Double EPDM O-ring spindle sealing.
- PTFE spindle seat.
Pressure & Temperature
- Nominal pressure PN40 for sizes DN15 to DN25.
- Nominal pressure PN25 for sizes DN32 to DN50.
- Operating temperature range from -10°C to +110°C.
Media & Operation
- Suitable for cold and hot water.
- Suitable for water-glycol mixtures with a maximum glycol concentration of 50%.
- Designed for automated operation with compatible HERZ electric actuators.
- Optional manual operation using the HERZ handle.
Accurate Flow Control
The V-shaped ball bore provides accurate linear flow control for efficient system regulation.
Reliable Shutoff
The precision-machined chrome-plated ball and PTFE sealing system support reliable and tight shutoff.
Low Operating Torque
Low torque requirements help reduce actuator wear and operating energy demand.
Corrosion Resistance
DZR copper-alloy construction supports extended service life in aggressive water conditions.
Automated or Manual Operation
The compact design supports both automated control and optional manual operation.
Wide Control Ratio
A control ratio of 500:1 supports precise modulation across varying system loads.
Easy Retrofit
Standardized HERZ actuators and handles support straightforward retrofit and operating flexibility.
Leak-Resistant Operation
Double O-ring spindle sealing supports durable and leak-resistant operation.
The HERZ DZR Two-Port Control Ball Valve is designed for closed-loop water systems requiring precise linear flow control in HVAC, hydronic, building automation, and district energy applications.
Heating, Ventilation & Air Conditioning
HVAC installations requiring controlled regulation of heating or cooling water flow.
Heating & Cooling Circuits
Hydronic heating and cooling circuits requiring precise, repeatable control.
District Energy & Building Automation
District energy networks and building automation systems using compatible HERZ electric actuators.
Chilled & Hot Water Circuits
Water-based closed-loop systems carrying chilled or hot water.
Glycol-Based Applications
Systems using water-glycol mixtures with glycol concentrations of up to 50%.
Commercial, Industrial & Residential Use
Precise flow-control applications across commercial, industrial, and residential installations.
Need support with this valve?
Share your HVAC project requirements and our MEP team will support you with the suitable product information.
Other Products in 2-Way Control Valves
Explore other products available within the same product category and open each page for complete technical details.

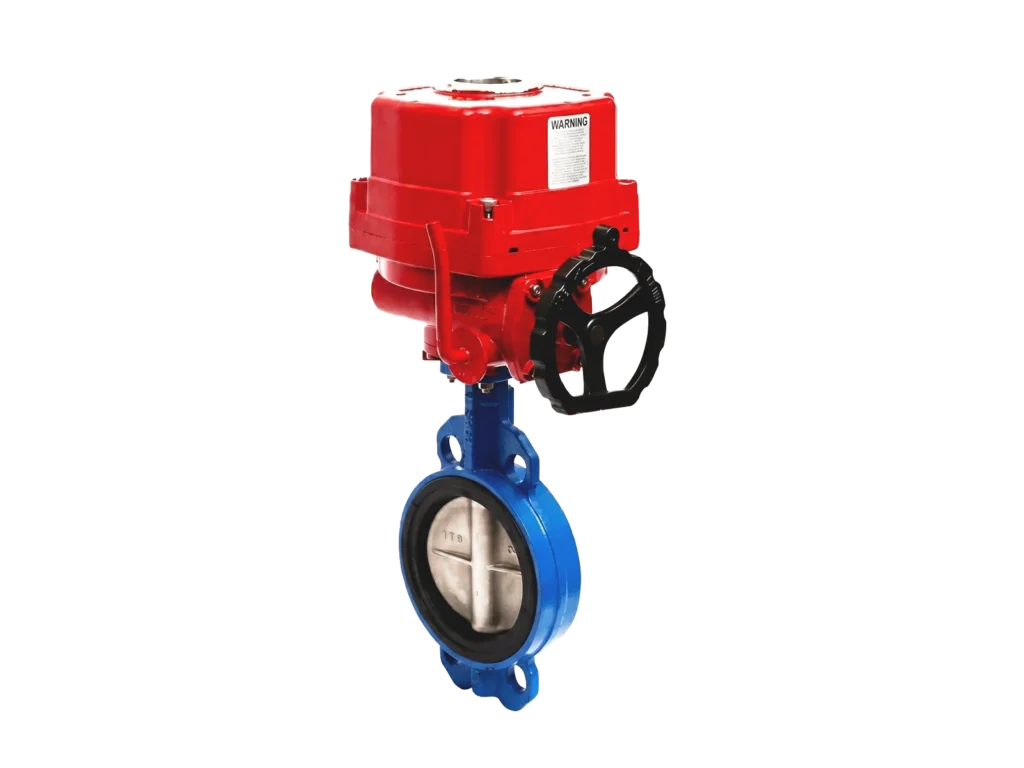

HERZ 4219 Motorized Butterfly Valve with ITQ Electric Actuator
View confirmed product details and technical information for HERZ 4219 Motorized Butterfly Valve with ITQ Electric Actuator.

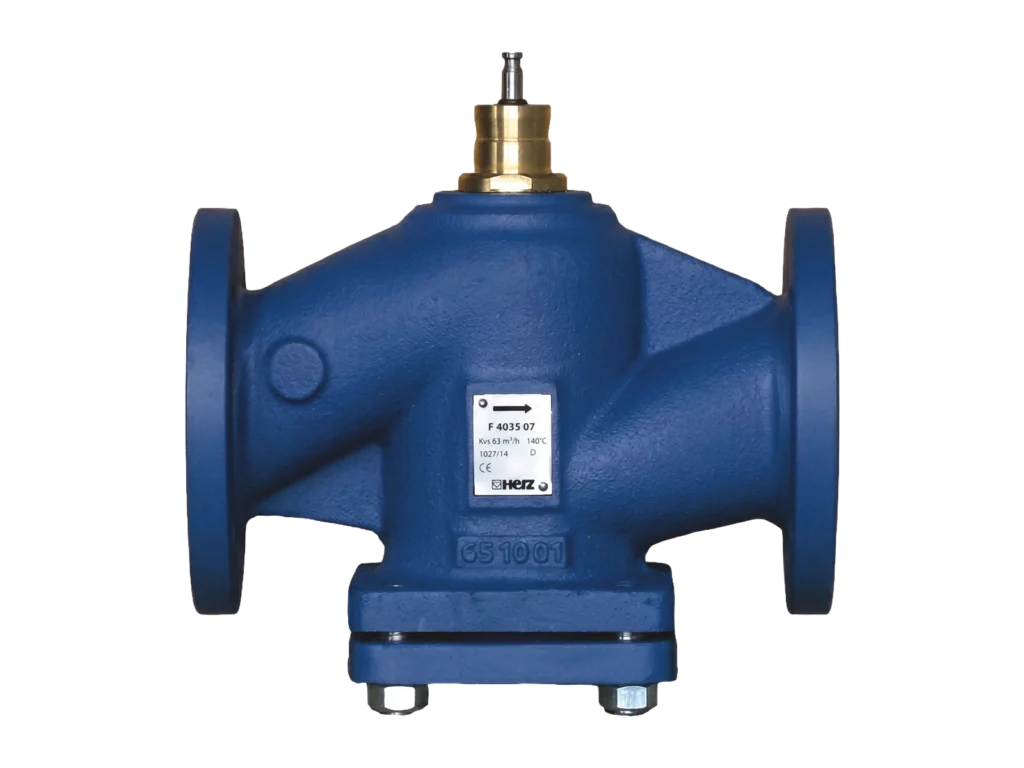

HERZ F4035 Two-Port Flanged Control Valve
